이글은 다음 문서를 참조합니다.

www.tensorflow.org/guide/keras/train_and_evaluate

(번역은 자력 + 파파고 + 구글 번역기를 사용하였으니, 부자연스럽더라도 양해바랍니다.)




Using callbacks

케라스에서 callback은 학습(epoch 시작, 끝 시점, batch의 끝시점 등)하는 동안 서로 다른 지점에서 호출되어지고, 다음과 같은 기능을 위해 사용되어집니다.

  • 학습하는 동안 다른 지점에서 검증하기
  • 일정 구간이나 특정 accuracy threshold를 초과할 때 모델에서 checkpointing
  • 학습이 안정적일때 상단 레이어에서 fine-tuning
  • email을 보내거나 학습 종료시에 알림보내기 또는 특정 성능이 일정 수준을 초과했을 때
  • Etc.

Callback은 fit함수를 통해 사용할 수 있습니다.

model = get_compiled_model()

callbacks = [
    keras.callbacks.EarlyStopping(
        # Stop training when `val_loss` is no longer improving
        monitor='val_loss',
        # "no longer improving" being defined as "no better than 1e-2 less"
        min_delta=1e-2,
        # "no longer improving" being further defined as "for at least 2 epochs"
        patience=2,
        verbose=1)
]
model.fit(x_train, y_train,
          epochs=20,
          batch_size=64,
          callbacks=callbacks,
          validation_split=0.2)



Many built-in callbacks are available

  • ModelCheckpoint : 주기적으로 모델을 저장하기
  • EarlyStopping : 학습하는 동안 validation이 더이상 향상되지 않을 경우 학습을 중단하기
  • TensorBoard : 각종 파라미터에 대해 TensorBoard로 사용할 수 있음
  • CSVLogger : loss와 metrics를 csv형태로 저장하기
  • etc.



Writing your own callback

keras.callbacks.Callback을 통해 customizing할 수 있습니다.

콜백은 클래스 속성 self.model을 통해 관련 모델에 액세스할 수 있습니다.

class LossHistory(keras.callbacks.Callback):

    def on_train_begin(self, logs):
        self.losses = []

    def on_batch_end(self, batch, logs):
        self.losses.append(logs.get('loss'))



Checkpointing models

상대적으로 큰 데이터셋을 학습할 때, 빈번하게 모델의 체크포인트를 저장하는 것은 매우 중요합니다.

ModelCheckpoint callback을 통해 쉽게 구현할 수 있습니다.

model = get_compiled_model()

callbacks = [
    keras.callbacks.ModelCheckpoint(
        filepath='mymodel_{epoch}.h5',
        # Path where to save the model
        # The two parameters below mean that we will overwrite
        # the current checkpoint if and only if
        # the `val_loss` score has improved.
        save_best_only=True,
        monitor='val_loss',
        verbose=1)
]
model.fit(x_train, y_train,
          epochs=3,
          batch_size=64,
          callbacks=callbacks,
          validation_split=0.2)

모델을 저장하고 복원하기 위한 콜백도 직접 작성할 수 있습니다.



Using learning rate schedules

딥러닝 모델을 학습할 때 공통적인 패턴은 점진적으로 learning rate를 감소 시키는 것입니다. 이를 "learning rate decay"라고 부릅니다.

learning decay schedule은 정적(현재 epoch 또는 현재 batch index의 함수로서 미리 고정) 또는 동적(특히 검증 손실)일 수 있다.



Passing a schedule to an optimizer

우리는 optimizer에서 learning_rate인자를 통해 schedule object를 전달하면 static learning rate schedule을 쉽게 사용할 수 있습니다.

initial_learning_rate = 0.1
lr_schedule = keras.optimizers.schedules.ExponentialDecay(
    initial_learning_rate,
    decay_steps=100000,
    decay_rate=0.96,
    staircase=True)

optimizer = keras.optimizers.RMSprop(learning_rate=lr_schedule)

내장된 함수는 다음과 같습니다 : ExponentialDecay, PiecewiseConstantDecay, PolynomialDecay and InverseTimeDecay



Using callbacks to implement a dynamic leraning rate schedule

동적 learning rate schedule(예를 들어, validation loss가 더 이상 감소하지 않을 때 lr을 감소시켜주는 경우)는 optimizer가 validation metrics에 허용되지 않는다면 이러한 스케줄을 행할 수 없습니다.

그러나 callback은 validation metrics를 포함하여 모든 평가지표에 접근할 수 있습니다! 그래서 optimizer의 현재 lr을 수정하는 callback을 사용하는 패턴을 사용할 수 있습니다. 사실, ReduceLROnPlateau callback함수로 내장되어 있습니다.



Visualizing loss and metrics during training

학습하는 동안 모델을 시각적으로 유지하는 가장 좋은 방법은 TensorBoard를 사용하는 것입니다.

  • 학습, 평가에 대한 loss 및 metrics를 실시간으로 plot할 수 있습니다.
  • (optionally) layer activations에 대한 히스토그램을 시각화 할 수 있습니다.
  • (optionally) Embedding layers에 의해 학습된 임베딩 공간을 3D 시각화 할 수 있습니다.

pip를 통해 텐서플로우를 설치했다면 다음과 같이 사용할 수 있습니다.

tensorboard --logdir=/full_path_to_your_logs



Using the TensorBoard callback

Keras 모델로 TensorBoard를 사용할 수 있는 가장 쉬운 방법은 TensorBoard Callback함수를 사용하는 것입니다.

tensorboard_cbk = keras.callbacks.TensorBoard(log_dir='/full_path_to_your_logs')
model.fit(dataset, epochs=10, callbacks=[tensorboard_cbk])

TensorBoard는 유용한 옵션들이 많습니다.

keras.callbacks.TensorBoard(
  log_dir='/full_path_to_your_logs',
  histogram_freq=0,  # How often to log histogram visualizations
  embeddings_freq=0,  # How often to log embedding visualizations
  update_freq='epoch')  # How often to write logs (default: once per epoch)

이글은 다음 문서를 참조합니다.

www.tensorflow.org/guide/keras/train_and_evaluate

(번역은 자력 + 파파고 + 구글 번역기를 사용하였으니, 부자연스럽더라도 양해바랍니다.)


Training & evaluation from tf.data Datasets

지금까지 loss, metrics, optimizers, validation_data, validation_split에 대해서 다루었습니다.

지금부터는 tf.data DataSet을 통해 데이터를 어떻게 다루는지 살펴보자.

tf.data API는 TensorFlow 2.0에서 빠르고 확장 가능한 방식으로 데이터를 로드하고 사전 처리하기 위한 유틸리티의 집합입니다.

DataSet을 통해 fit(), evaluate(), predict() 를 사용할 수 있습니다.

model = get_compiled_model()

# First, let's create a training Dataset instance.
# For the sake of our example, we'll use the same MNIST data as before.
train_dataset = tf.data.Dataset.from_tensor_slices((x_train, y_train))
# Shuffle and slice the dataset.
train_dataset = train_dataset.shuffle(buffer_size=1024).batch(64)

# Now we get a test dataset.
test_dataset = tf.data.Dataset.from_tensor_slices((x_test, y_test))
test_dataset = test_dataset.batch(64)

# Since the dataset already takes care of batching,
# we don't pass a `batch_size` argument.
model.fit(train_dataset, epochs=3)

# You can also evaluate or predict on a dataset.
print('\n# Evaluate')
model.evaluate(test_dataset)

DataSet은 epoch가 끝날때마다 reset되므로 다음 epoch에서 재사용되어질 수 있습니다.

이러한 DataSet으로부터 구체적인 배치의 수만큼 학습시키길 원한다면, 다음 epoch으로 넘어가기전에 DataSet을 사용하여 얼만큼의 training steps를 거칠것인지를 다루는 steps_per_epoch 인자를 사용하세요.

이렇게 하면 각 epoch때마다 DataSet이 reset되지 않고, 대신 다음 배치만큼만 사용하게됩니다. 무한하지 않은 dataset은 결국 run-out-of-data가 될 것입니다.

model = get_compiled_model()

# Prepare the training dataset
train_dataset = tf.data.Dataset.from_tensor_slices((x_train, y_train))
train_dataset = train_dataset.shuffle(buffer_size=1024).batch(64)

# Only use the 100 batches per epoch (that's 64 * 100 samples)
model.fit(train_dataset, epochs=3, steps_per_epoch=100)



Using a validation dataset

DataSet 인스턴스로 validation_data를 사용할 수 있습니다.

model = get_compiled_model()

# Prepare the training dataset
train_dataset = tf.data.Dataset.from_tensor_slices((x_train, y_train))
train_dataset = train_dataset.shuffle(buffer_size=1024).batch(64)

# Prepare the validation dataset
val_dataset = tf.data.Dataset.from_tensor_slices((x_val, y_val))
val_dataset = val_dataset.batch(64)

model.fit(train_dataset, epochs=3, validation_data=val_dataset)

각 epoch이 끝날때마다 모델은 validation loss, metrics를 계산하고, 반복할 것입니다.

validation_steps를 사용하면 steps_per_epoch과 같은 효과를 얻을 수 있습니다.

model = get_compiled_model()

# Prepare the training dataset
train_dataset = tf.data.Dataset.from_tensor_slices((x_train, y_train))
train_dataset = train_dataset.shuffle(buffer_size=1024).batch(64)

# Prepare the validation dataset
val_dataset = tf.data.Dataset.from_tensor_slices((x_val, y_val))
val_dataset = val_dataset.batch(64)

model.fit(train_dataset, epochs=3,
          # Only run validation using the first 10 batches of the dataset
          # using the `validation_steps` argument
          validation_data=val_dataset, validation_steps=10)

검증 데이터셋은 각 사용 후 재설정됩니다.(Epoch부터 Epoch까지 항상 동일한 표본에 대해 평가하게 됨).

DataSet에선 validation_split을 사용할 수 없습니다.



Other input formats supported

넘파이 배열과 DataSet외에도 Pandas dataframe, python generator를 사용해 keras를 학습시킬 수 있습니다.

일반적으로, 데이터가 작거나 메모리에 적당한 데이터라면 넘파이 배열이나 DataSets를 추천합니다.



Using sample weighting and class weighting

입력 데이터와 대상 데이터 외에도 fit() 사용 시 표본 가중치 또는 class 가중치를 모델에 전달할 수 있습니다.

  • Numpy data일 경우 : sample_weight, class_weight
  • DataSets일 경우 : (input_batch, target batch, sample_weight_batch)

"sample weights"는 총 손실을 계산할 때 각 샘플이 배치에서 얼마나 많은 가중을 받아야 하는지를 구체적으로 담은 배열입니다. 흔히 불균형 분류 문제에 사용되어집니다.(부족한 데이터를 가진 class에 더 높은 가중을 주는 경우). 사용된 가중치가 1과 0인 경우, 총 손실에 특정 샘플의 기여를 무시하는 손실 함수를 위한 mask로서 사용될 수 있습니다.

"class weights"는 클래스에 따라 샘플들이 가져야하는 가중에 대한 배열입니다. 예를 들어, 0이 1보다 2배 적다면 class_weight={0:1., 1:0.5}와 같이 사용할 수 있습니다.

다음은 클래스 가중치 또는 샘플 가중치를 사용하여 클래스 #5(MNIST 데이터 세트의 숫자 "5")의 올바른 분류에 더 중요성을 부여하는 Numpy 예입니다.

import numpy as np

class_weight = {0: 1., 1: 1., 2: 1., 3: 1., 4: 1.,
                # Set weight "2" for class "5",
                # making this class 2x more important
                5: 2.,
                6: 1., 7: 1., 8: 1., 9: 1.}
model.fit(x_train, y_train,
          class_weight=class_weight,
          batch_size=64,
          epochs=4)

# Here's the same example using `sample_weight` instead:
sample_weight = np.ones(shape=(len(y_train),))
sample_weight[y_train == 5] = 2.

model = get_compiled_model()
model.fit(x_train, y_train,
          sample_weight=sample_weight,
          batch_size=64,
          epochs=4)

다음은 DataSet을 사용한 예입니다.

sample_weight = np.ones(shape=(len(y_train),))
sample_weight[y_train == 5] = 2.

# Create a Dataset that includes sample weights
# (3rd element in the return tuple).
train_dataset = tf.data.Dataset.from_tensor_slices(
    (x_train, y_train, sample_weight))

# Shuffle and slice the dataset.
train_dataset = train_dataset.shuffle(buffer_size=1024).batch(64)

model = get_compiled_model()
model.fit(train_dataset, epochs=3)



Passing data to multi-input, multi-output models

앞의 예에서는 단일 입력(764,)와 단일 출력(10,)을 사용했습니다. 다중 입력/출력 일때는 어떻게 해야할까요?

(None - timesteps, 10 - features)로 이루어진 시계열 입력과 (32, 32, 3)으로 이루어진 이미지 입력을 생각해 봅시다. 모델은 점수와 5class로 구성된 확률분포를 output으로 가집니다.

from tensorflow import keras
from tensorflow.keras import layers

image_input = keras.Input(shape=(32, 32, 3), name='img_input')
timeseries_input = keras.Input(shape=(None, 10), name='ts_input')

x1 = layers.Conv2D(3, 3)(image_input)
x1 = layers.GlobalMaxPooling2D()(x1)

x2 = layers.Conv1D(3, 3)(timeseries_input)
x2 = layers.GlobalMaxPooling1D()(x2)

x = layers.concatenate([x1, x2])

score_output = layers.Dense(1, name='score_output')(x)
class_output = layers.Dense(5, activation='softmax', name='class_output')(x)

model = keras.Model(inputs=[image_input, timeseries_input],
                    outputs=[score_output, class_output])

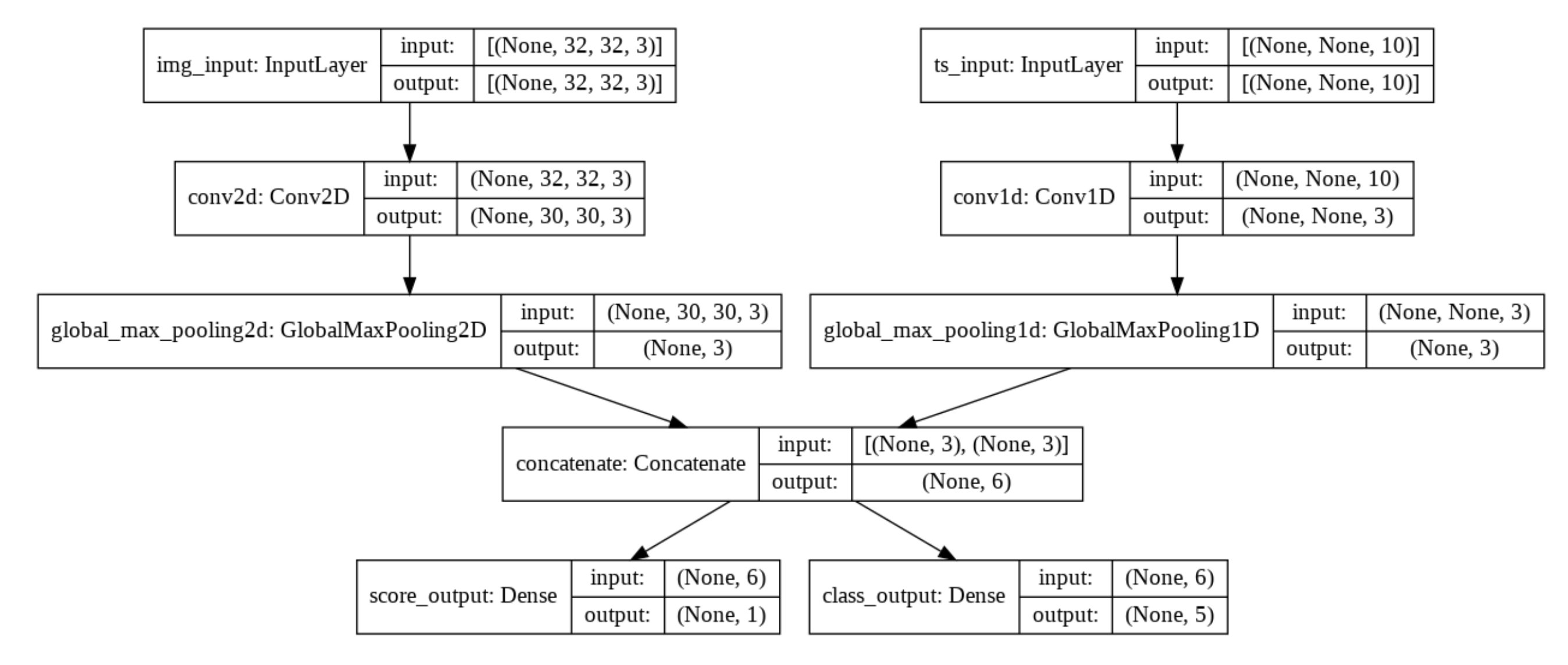

keras.utils.plot_model(model, '*.png', show_shapes = True)

컴파일할 때 loss function에 각 output에 맞는 서로다른 loss에 대한 리스트를 전달할 수 있습니다.

model.compile(
    optimizer=keras.optimizers.RMSprop(1e-3),
    loss=[keras.losses.MeanSquaredError(),
          keras.losses.CategoricalCrossentropy()])

만약 loss fuction을 하나만 전달한다면 모든 output에 대해 동일하게 적용시킵니다.

model.compile(
    optimizer=keras.optimizers.RMSprop(1e-3),
    loss=[keras.losses.MeanSquaredError(),
          keras.losses.CategoricalCrossentropy()],
    metrics=[[keras.metrics.MeanAbsolutePercentageError(),
              keras.metrics.MeanAbsoluteError()],
             [keras.metrics.CategoricalAccuracy()]])

각각에 대해 이름을 지정해주고 싶다면 dict형태로 전달해주면 됩니다.

model.compile(
    optimizer=keras.optimizers.RMSprop(1e-3),
    loss={'score_output': keras.losses.MeanSquaredError(),
          'class_output': keras.losses.CategoricalCrossentropy()},
    metrics={'score_output': [keras.metrics.MeanAbsolutePercentageError(),
                              keras.metrics.MeanAbsoluteError()],
             'class_output': [keras.metrics.CategoricalAccuracy()]})

2가지 이상의 output에 대한 평가지표를 사용할 때 꼭 name을 사용하는 것을 추천합니다.

loss_weight 인수를 사용하여 다른 출력별 손실에 대해 다른 가중치를 부여할 수 있습니다. (예를 들어, 클래스 손실의 2배에 해당하는 중요성을 부여함으로써 우리의 예에서 "점수" 손실을 좀 더 특별하게 하고자 할 수 있습니다).

model.compile(
    optimizer=keras.optimizers.RMSprop(1e-3),
    loss={'score_output': keras.losses.MeanSquaredError(),
          'class_output': keras.losses.CategoricalCrossentropy()},
    metrics={'score_output': [keras.metrics.MeanAbsolutePercentageError(),
                              keras.metrics.MeanAbsoluteError()],
             'class_output': [keras.metrics.CategoricalAccuracy()]},
    loss_weight={'score_output': 2., 'class_output': 1.})

이러한 outputs이 예측이아니라 학습을 위한 것이라면, 특정 output에 대해서는 계산을 허용하지 않을 수도 있습니다.

# List loss version
model.compile(
    optimizer=keras.optimizers.RMSprop(1e-3),
    loss=[None, keras.losses.CategoricalCrossentropy()])

# Or dict loss version
model.compile(
    optimizer=keras.optimizers.RMSprop(1e-3),
    loss={'class_output': keras.losses.CategoricalCrossentropy()})

fit 함수데이터를 적합한 다중 입력 또는 다중 출력 모델로 전송하는 것은 컴파일에서 손실 함수를 지정하는 것과 유사한 방식으로 작동합니다. 넘파이 배열을 활용한 dict나 list형태를 사용할 수 있습니다.

model.compile(
    optimizer=keras.optimizers.RMSprop(1e-3),
    loss=[keras.losses.MeanSquaredError(),
          keras.losses.CategoricalCrossentropy()])

# Generate dummy Numpy data
img_data = np.random.random_sample(size=(100, 32, 32, 3))
ts_data = np.random.random_sample(size=(100, 20, 10))
score_targets = np.random.random_sample(size=(100, 1))
class_targets = np.random.random_sample(size=(100, 5))

# Fit on lists
model.fit([img_data, ts_data], [score_targets, class_targets],
          batch_size=32,
          epochs=3)

# Alernatively, fit on dicts
model.fit({'img_input': img_data, 'ts_input': ts_data},
          {'score_output': score_targets, 'class_output': class_targets},
          batch_size=32,
          epochs=3)

다음은 DataSet을 이용한 경우입니다.

train_dataset = tf.data.Dataset.from_tensor_slices(
    ({'img_input': img_data, 'ts_input': ts_data},
     {'score_output': score_targets, 'class_output': class_targets}))
train_dataset = train_dataset.shuffle(buffer_size=1024).batch(64)

model.fit(train_dataset, epochs=3)

Abstract

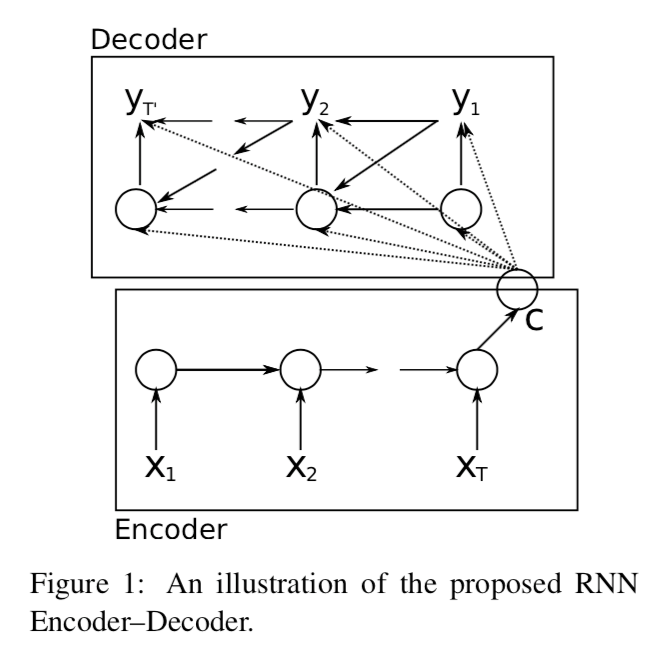

In this paper, we propose a novel neural network model called RNN Encoder–Decoder that consists of two recurrent neural networks (RNN). One RNN encodes a sequence of symbols into a fixed- length vector representation, and the other decodes the representation into another sequence of symbols. The encoder and de- coder of the proposed model are jointly trained to maximize the conditional probability of a target sequence given a source sequence. The performance of a statistical machine translation system is empirically found to improve by using the conditional probabilities of phrase pairs computed by the RNN Encoder–Decoder as an additional feature in the existing log-linear model. Qualitatively, we show that the proposed model learns a semantically and syntactically meaningful representation of linguistic phrases.


이 논문은 두개의 RNN으로 구성된 RNN Encoder-Decoder이라고 명명된 새로운 신경망 구조를 제안한다.

첫번째 RNN은 문장을 쪼개어 고정 길이의 벡터에 mapping하고, 두번째 RNN은 인코딩된 벡터를 하나의 단어씩 디코딩하여 다시 하나의 문장으로 만든다.

이 모델의 인코더와 디코더는 주어진 source 문장에서 target 문장의 조건부 확률을 최대화하도록 학습한다.

통계 기계 번역 시스템의 성능은 RNN 인코더-디코더가 기존 로그-선형 모델의 추가 특징으로 제시한 구문 쌍의 조건부 확률을 사용하여 개선되는 것으로 경험적으로 확인된다.

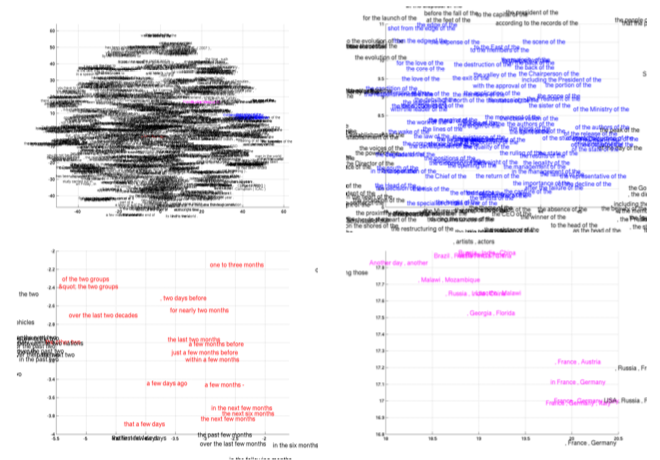

질적으로, 우리는 제안된 모델이 의미적이고 의미 있는 언어적 어구의 표현을 배운다는 것을 보여준다.


요약

  • SMT의 성능을 높일 수 있었으며, 완전히 대체할 가능성을 보았다.

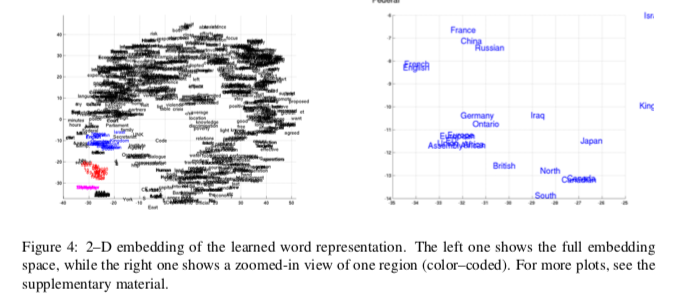

  • 학습된 벡터가 의미와 문법을 포착한다.
  • RNN을 활용하여 문장 구절을 학습시킴(다양한 길이에 적용 가능)





Reference

Cho, K., Van Merriënboer, B., Gulcehre, C., Bahdanau, D., Bougares, F., Schwenk, H., & Bengio, Y. (2014). Learning phrase representations using RNN encoder-decoder for statistical machine translation. arXiv preprint arXiv:1406.1078.

이글은 다음 문서를 참조합니다.

www.tensorflow.org/guide/keras/train_and_evaluate

(번역은 자력 + 파파고 + 구글 번역기를 사용하였으니, 부자연스럽더라도 양해바랍니다.)


Training and Evaluation with Tensorflow Keras

이번 가이드는 tensorflow 2.0에서 겪을 수 있는 training, evaluation, prediction을 다룹니다.

  • (model.fit(), model.evaluate(), model.predict())를 사용하는 경우
  • eager execution and the GradientTape를 사용하는 경우

일반적으로, 여러분이 내장된 루프를 사용하든, 여러분 자신의 루프를 쓰든, 모델 훈련과 평가는 모든 종류의 케라스 모델, 즉 Sequential 모델, funtional API로 제작된 모델, 모델 하위 분류를 통해 처음부터 작성된 모델에서 엄격하게 같은 방식으로 작동한다.

이 가이드는 분산 트레이닝에 대한 내용은 다루지 않습니다.



Part 1: Using build-in training & evaluation loops

model의 내장된 traninig 루프에 데이터를 넣어줄 떄, Numpy array(데이터가 작거나 메모리에 적당한 경우)나 tf.data Dataset 객체를 사용해야만 합니다. 다음에 나오는 내용들은 optimizers, losses, metrics를 어떻게 사용하는지에 대해 numpy array를 사용한 MNIST 데이터셋에 대한 예제를 다룰 것입니다.

API overview: a first end-to-end example

다음 예제를 보자.

from tensorflow import keras
from tensorflow.keras import layers

inputs = keras.Input(shape=(784,), name='digits')
x = layers.Dense(64, activation='relu', name='dense_1')(inputs)
x = layers.Dense(64, activation='relu', name='dense_2')(x)
outputs = layers.Dense(10, activation='softmax', name='predictions')(x)

model = keras.Model(inputs=inputs, outputs=outputs)

test data에 대한 평가와 train data에서 생성되는 hold out set에 대한 검증, train data로 구성되는 전형적인 end-to-end의 workflow는 다음과 같습니다.

# Load a toy dataset for the sake of this example
(x_train, y_train), (x_test, y_test) = keras.datasets.mnist.load_data()

# Preprocess the data (these are Numpy arrays)
x_train = x_train.reshape(60000, 784).astype('float32') / 255
x_test = x_test.reshape(10000, 784).astype('float32') / 255

# Reserve 10,000 samples for validation
x_val = x_train[-10000:]
y_val = y_train[-10000:]
x_train = x_train[:-10000]
y_train = y_train[:-10000]

# Specify the training configuration (optimizer, loss, metrics)
model.compile(optimizer=keras.optimizers.RMSprop(),  # Optimizer
              # Loss function to minimize
              loss=keras.losses.SparseCategoricalCrossentropy(),
              # List of metrics to monitor
              metrics=[keras.metrics.SparseCategoricalAccuracy()])

# Train the model by slicing the data into "batches"
# of size "batch_size", and repeatedly iterating over
# the entire dataset for a given number of "epochs"
print('# Fit model on training data')
history = model.fit(x_train, y_train,
                    batch_size=64,
                    epochs=3,
                    # We pass some validation for
                    # monitoring validation loss and metrics
                    # at the end of each epoch
                    validation_data=(x_val, y_val))

# The returned "history" object holds a record
# of the loss values and metric values during training
print('\nhistory dict:', history.history)

# Evaluate the model on the test data using `evaluate`
print('\n# Evaluate on test data')
results = model.evaluate(x_test, y_test, batch_size=128)
print('test loss, test acc:', results)

# Generate predictions (probabilities -- the output of the last layer)
# on new data using `predict`
print('\n# Generate predictions for 3 samples')
predictions = model.predict(x_test[:3])
print('predictions shape:', predictions.shape)



Specifying a loss, metrics, and an optimizer

model의 fit함수를 사용하여 train시키려면 우리는 구체적인 loss function, optimizer, metric에 대해 정의해야 합니다.

이러한 것들은 compile()에 인자로 넘길 수 있습니다.

model.compile(optimizer=keras.optimizers.RMSprop(learning_rate=1e-3),
              loss=keras.losses.SparseCategoricalCrossentropy(),
              metrics=[keras.metrics.SparseCategoricalAccuracy()])

metrics 인자는 list형태여야 하며 우리가 원하는 어떠한 metric도 추가 될 수 있습니다.

만약 우리의 모델이 multiple output이라면, 각각 다른 loss와 metrics를 지정할 수 있고, total loss에 대한 영향을 조절할 수 있습니다. 향후 다룰 "Passing data to multi-input, multi-output models" section에서 더욱 자세한 내용을 찾아 볼 수 있습니다.

다음 예시와 같이 loss, metrics는 string 식별자로도 접근할 수 있습니다.

model.compile(optimizer=keras.optimizers.RMSprop(learning_rate=1e-3),
              loss='sparse_categorical_crossentropy',
              metrics=['sparse_categorical_accuracy'])

나중에 재사용할 수 있도록 모델 정의와 기능의 단계를 정리해 봅시다. 이 가이드의 다른 예에서 여러 번 부르기로 합시다.

def get_uncompiled_model():
  inputs = keras.Input(shape=(784,), name='digits')
  x = layers.Dense(64, activation='relu', name='dense_1')(inputs)
  x = layers.Dense(64, activation='relu', name='dense_2')(x)
  outputs = layers.Dense(10, activation='softmax', name='predictions')(x)
  model = keras.Model(inputs=inputs, outputs=outputs)
  return model

def get_compiled_model():
  model = get_uncompiled_model()
  model.compile(optimizer=keras.optimizers.RMSprop(learning_rate=1e-3),
              loss='sparse_categorical_crossentropy',
              metrics=['sparse_categorical_accuracy'])
  return model



Many built-in optimizers, losses, and metrics are available

일반적으로 직접 정의하는 것 보단 Keras API에 정의된 것을 사용하는게 편할 것입니다.

  • Optimizers : - SGD()(with or without momentum) - RMSprop() - Adam() - etc.
  • Losses : - MeanSquaredError() - KLDivergence() - CosineSimilarity() - etc.
  • Metrics : - AUC() - Precision() - Recall() - etc.

Writing custom losses and metrics

API에 존재하지 않는 지표가 필요하다면, Metric class를 이용해 쉽게 customizing할 수 있습니다. 4개의 method가 필요합니다.

  • __init__(self), 우리의 metrics를 위한 state variables를 정의합니다.
  • update_state(self, y_true, y_pred, sample_weight=None), y_true값과 state variables를 업데이트할 y_pred를 사용합니다.
  • result(self), 결과를 도출합니다.
  • reset_states(self), 지표의 상태를 초기화합니다.

State update와 결과 도출은 결과를 계산하는 것이 매우 오래걸리기 때문에 각각 updatae_state()와 result()로 나누어져 있습니다.

아래 예제는 분류문제에서 각 Sample이 얼마나 맞췄는지에 대해 갯수를 세는 CategoricalTruePositives를 정의한 것입니다.

class CatgoricalTruePositives(keras.metrics.Metric):

    def __init__(self, name='binary_true_positives', **kwargs):
      super(CatgoricalTruePositives, self).__init__(name=name, **kwargs)
      self.true_positives = self.add_weight(name='tp', initializer='zeros')

    def update_state(self, y_true, y_pred, sample_weight=None):
      y_pred = tf.argmax(y_pred)
      values = tf.equal(tf.cast(y_true, 'int32'), tf.cast(y_pred, 'int32'))
      values = tf.cast(values, 'float32')
      if sample_weight is not None:
        sample_weight = tf.cast(sample_weight, 'float32')
        values = tf.multiply(values, sample_weight)
      return self.true_positives.assign_add(tf.reduce_sum(values))  # TODO: fix

    def result(self):
      return tf.identity(self.true_positives)  # TODO: fix

    def reset_states(self):
      # The state of the metric will be reset at the start of each epoch.
      self.true_positives.assign(0.)


model.compile(optimizer=keras.optimizers.RMSprop(learning_rate=1e-3),
              loss=keras.losses.SparseCategoricalCrossentropy(),
              metrics=[CatgoricalTruePositives()])
model.fit(x_train, y_train,
          batch_size=64,
          epochs=3)



Handling losses and metrics that don't fit the standard signature

압도적인 다수의 손실과 측정 지표는 y_true와 y_pred로 계산할 수 있습니다. 여기서 y_pred는 모델의 산출물입니다. 하지만 전부 다 그런 것은 아닙니다. 예를 들어, 정규화 손실은 계층의 활성화만 필요할 수 있으며(이 경우에는 대상이 없다), 이 활성화는 모델 출력이 아닐 수 있 수 있습니다.

이러한 경우에 우리는 custom layer의 call 메서드를 통한 self.add_loss(loss_value)를 사용할 수 있습니다.

class ActivityRegularizationLayer(layers.Layer):

  def call(self, inputs):
    self.add_loss(tf.reduce_sum(inputs) * 0.1)
    return inputs  # Pass-through layer.

inputs = keras.Input(shape=(784,), name='digits')
x = layers.Dense(64, activation='relu', name='dense_1')(inputs)

# Insert activity regularization as a layer
x = ActivityRegularizationLayer()(x)

x = layers.Dense(64, activation='relu', name='dense_2')(x)
outputs = layers.Dense(10, activation='softmax', name='predictions')(x)

model = keras.Model(inputs=inputs, outputs=outputs)
model.compile(optimizer=keras.optimizers.RMSprop(learning_rate=1e-3),
              loss='sparse_categorical_crossentropy')

# The displayed loss will be much higher than before
# due to the regularization component.
model.fit(x_train, y_train,
          batch_size=64,
          epochs=1)

metric 값 logging에 대해서도 동일한 작업을 진행할 수 있습니다.

class MetricLoggingLayer(layers.Layer):

  def call(self, inputs):
    # The `aggregation` argument defines
    # how to aggregate the per-batch values
    # over each epoch:
    # in this case we simply average them.
    self.add_metric(keras.backend.std(inputs),
                    name='std_of_activation',
                    aggregation='mean')
    return inputs  # Pass-through layer.


inputs = keras.Input(shape=(784,), name='digits')
x = layers.Dense(64, activation='relu', name='dense_1')(inputs)

# Insert std logging as a layer.
x = MetricLoggingLayer()(x)

x = layers.Dense(64, activation='relu', name='dense_2')(x)
outputs = layers.Dense(10, activation='softmax', name='predictions')(x)

model = keras.Model(inputs=inputs, outputs=outputs)
model.compile(optimizer=keras.optimizers.RMSprop(learning_rate=1e-3),
              loss='sparse_categorical_crossentropy')
model.fit(x_train, y_train,
          batch_size=64,
          epochs=1)

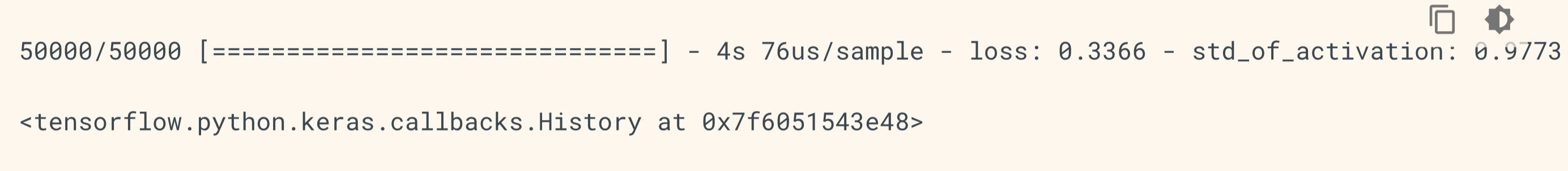

옆에 std_of_activation 참고

Functional API에서 또한, model.add_loss(loss_tensor) or model.add_metric(metric_tensor, name, aggregation)을 호출할 수 있습니다.

간단한 예시입니다.

inputs = keras.Input(shape=(784,), name='digits')
x1 = layers.Dense(64, activation='relu', name='dense_1')(inputs)
x2 = layers.Dense(64, activation='relu', name='dense_2')(x1)
outputs = layers.Dense(10, activation='softmax', name='predictions')(x2)
model = keras.Model(inputs=inputs, outputs=outputs)

model.add_loss(tf.reduce_sum(x1) * 0.1)

model.add_metric(keras.backend.std(x1),
                 name='std_of_activation',
                 aggregation='mean')

model.compile(optimizer=keras.optimizers.RMSprop(1e-3),
              loss='sparse_categorical_crossentropy')
model.fit(x_train, y_train,
          batch_size=64,
          epochs=1)



Automatically setting apart a validation holdout set

우리는 각 epoch마다 (x_val, y_val)을 통해 평가할 수 있습니다.

이를 위한 옵션이 있습니다 : validation_split 인자는 자동적으로 우리의 training_data에서 우리가 허용한 만큼 뒷 부분을 validation_data로 만듭니다. 이 인자값은 데이터에서 얼마만큼의 검증데이터를 만들 것인지를 나타내며, 0과 1사이의 값으로 조정합니다. 예를 들어, validation_split = 0.2는 traninig 데이터의 20퍼를 검증데이터로 활용하겠다는 뜻입니다.

이러한 검증 방법은 shuffling 전에 fit함수에서의 호출을 통해 데이터의 끝 x%만큼을 validation_data로 활용하게 됩니다.

model = get_compiled_model()
model.fit(x_train, y_train, batch_size=64, validation_split=0.2, epochs=3)



Abstract

https://github.com/msracver/Deformable-ConvNets.

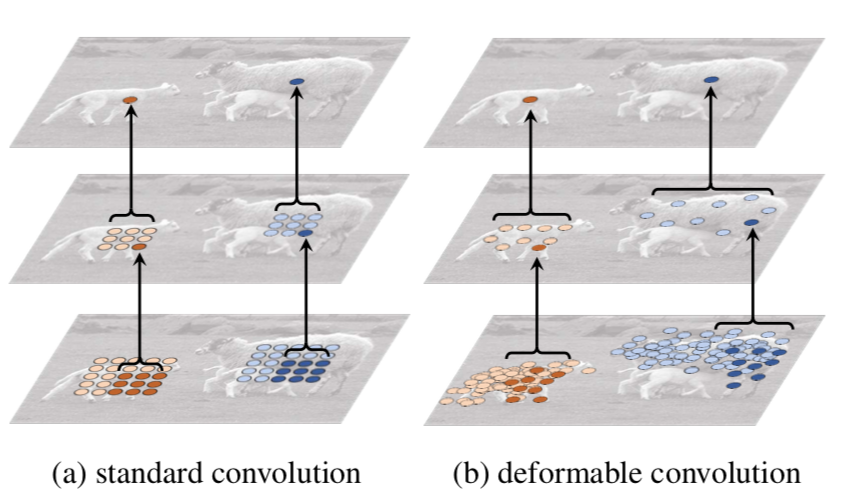

Convolutional neural networks (CNNs) are inherently limited to model geometric transformations due to the fixed geometric structures in their building modules. In this work, we introduce two new modules to enhance the transformation modeling capability of CNNs, namely, de- formable convolution and deformable RoI pooling. Both are based on the idea of augmenting the spatial sampling locations in the modules with additional offsets and learn- ing the offsets from the target tasks, without additional supervision. The new modules can readily replace their plain counterparts in existing CNNs and can be easily trained end-to-end by standard back-propagation, giving rise to deformable convolutional networks. Extensive ex- periments validate the performance of our approach. For the first time, we show that learning dense spatial trans- formation in deep CNNs is effective for sophisticated vi- sion tasks such as object detection and semantic segmen- tation. The code is released at https://github.com/msracver/Deformable-ConvNets.


CNN은 구조 안에서 고정된 기하학적 구조때문에 model geometric transformation이 제한적이다.

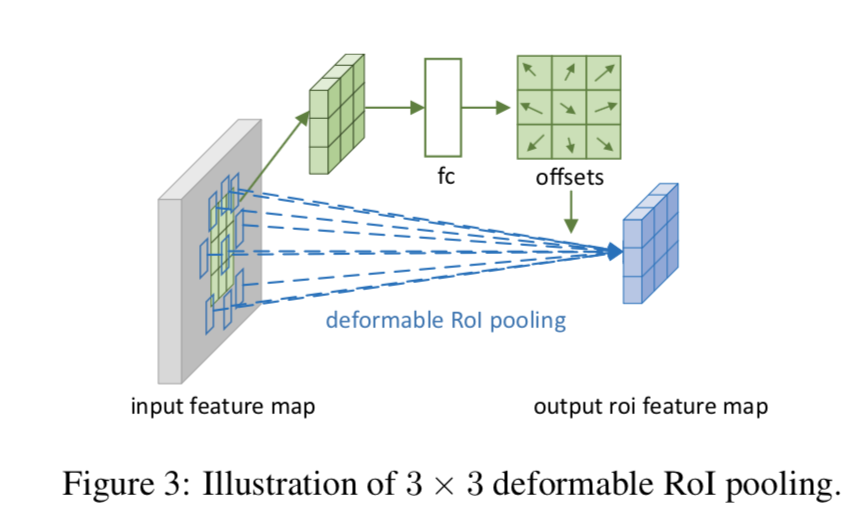

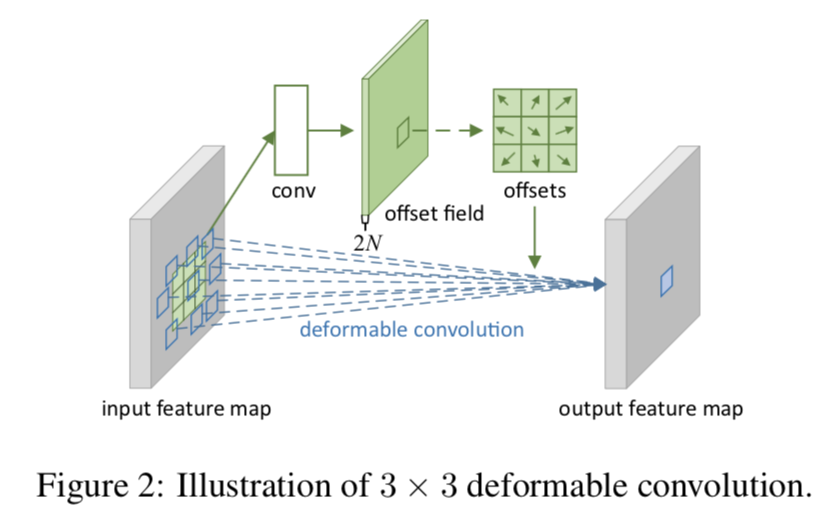

이 연구에서는 이러한 한계점을 극복할 수 있는 deformable cnn, RoI pooling을 소개한다.

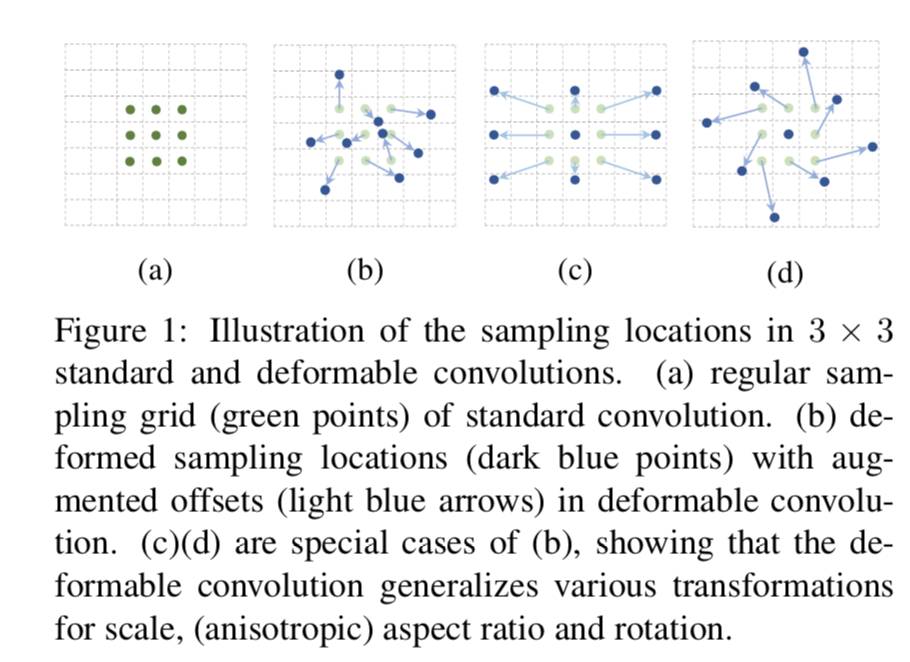

둘 다 추가적인 오프셋으로 모듈의 공간 샘플링 위치를 늘리고 추가적인 감독 없이 대상 작업에서 오프셋을 학습한다는 아이디어이다.

이러한 새로운 모듈들은 cnn의 기본적은 기능을 행할 수 있어 대체 가능하다.

많은 실험으로 우리의 연구를 검증하였다.

첫번째로 object detection, semantic segmentation과 같은 정교한 vision tasks를 위한 효과적인 deep CNN에서의 밀집한 공간 변화 학습을 보여준다.


요약

  • object detection에서 object의 크기는 각각 제각기인데, 고정된 필터사이즈로는 학습해서 제대로된 결과를 얻기가 힘들다.

  • 따라서 이 연구에서는 filter size 또한 학습하여 객체 크기에 맞게 변화하도록 하는 것이다.

  • 이 논문은 Spatial Transform Networks(STN)과 철학을 공유한다.

  • regular MNIST에서는 기존의 CNN이 더 좋은 결과를 보이나, Scaled 또는 rotation MNIST에서는 더 좋은 결과를 보인다.

  • 마지막 3개(또는 6개)의 레이어에서만 deformable cnn을 사용하는 것이 가장 결과가 좋았다.




Reference

Dai, J., Qi, H., Xiong, Y., Li, Y., Zhang, G., Hu, H., & Wei, Y. (2017). Deformable convolutional networks. In Proceedings of the IEEE international conference on computer vision (pp. 764-773).
